How To Create a Hierarchical OLAP Overlay: Techniques for Layering Dimensions, Levels, and Drill Paths in BI Dashboards

What Is a Hierarchical OLAP Overlay?

A hierarchical OLAP overlay is a structured representation of dimension levels applied on top of an OLAP cube. It does not replace the cube’s internal hierarchy (if one exists), but rather enhances or customizes it for reporting and dashboarding. Overlays are especially useful when the cube’s native hierarchy is incomplete, too rigid, or not aligned with the business user’s mental model.

For example, a cube may store product categories as a flat list. A hierarchical overlay can reorganize them into a three-level structure—Product Line, Category, and SKU—without modifying the cube itself. This allows dashboards to support drill paths, breadcrumb navigation, and level-based filtering.

Why Hierarchical Overlays Matter in OLAP Analysis

Hierarchical overlays solve several common challenges in multidimensional analytics:

• They make navigation intuitive. Users can drill from high-level summaries to granular details.
• They support flexible reporting. Dashboards can show data at any level of the hierarchy.
• They reduce clutter. Instead of showing hundreds of categories, overlays group them into meaningful levels.
• They improve performance. Aggregations can be computed at higher levels before drilling into lower ones.
• They align data with business structure. Overlays reflect how organizations think about their data.

In short, hierarchical overlays turn raw OLAP dimensions into structured, navigable, and business-friendly analytical experiences.

Core Components of a Hierarchical OLAP Overlay

Dimension Levels

Levels are the backbone of any hierarchy. They define the order in which users can drill down or roll up. For example:

• Year → Quarter → Month → Day
• Region → Country → State → City
• Product Line → Category → Subcategory → SKU

Each level must be clearly defined and consistently applied. Ambiguous or overlapping levels lead to confusion and inaccurate aggregations.

Parent-Child Relationships

Parent-child structures define how items relate to one another. In some cases, these relationships are fixed (for example, a city always belongs to a state). In other cases, they may be dynamic or ragged, such as organizational charts where some managers have multiple layers of subordinates.

A hierarchical overlay must support both balanced and unbalanced hierarchies. Balanced hierarchies have the same number of levels for every branch, while unbalanced hierarchies vary in depth.

Drill Paths

Drill paths define the order in which users can navigate through the hierarchy. A well-designed drill path ensures that each step reveals meaningful detail. Poorly designed drill paths force users to jump between unrelated levels or skip important context.

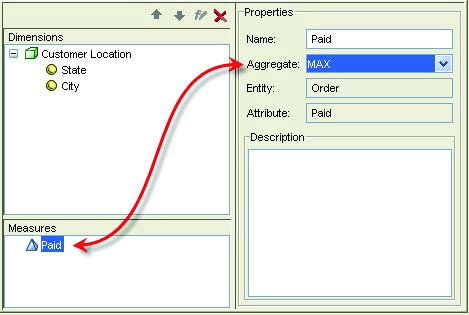

Aggregation Rules

Aggregation rules determine how measures roll up across levels. For example:

• Sales may sum across levels.
• Conversion rate may need weighted averaging.
• Inventory may require last-known-value aggregation.

A hierarchical overlay must respect the cube’s aggregation logic while ensuring that roll-ups remain accurate at every level.

How To Create a Hierarchical OLAP Overlay

Creating a hierarchical overlay involves several steps, from defining the hierarchy to implementing it in dashboards. The process varies by BI platform, but the underlying principles remain consistent.

Step 1: Identify the Business Hierarchy

Start by understanding how the business naturally organizes its data. Interview stakeholders, review existing reports, and examine operational systems. The goal is to define a hierarchy that matches real-world structures.

For example, a sales organization may think in terms of:

• Global Region
• Sales Territory
• Account
• Contact

This hierarchy becomes the foundation of the overlay.

Step 2: Map Dimensions to Levels

Once the hierarchy is defined, map each dimension value to its appropriate level. This may require:

• Cleaning inconsistent labels
• Standardizing naming conventions
• Resolving missing or ambiguous parent relationships

The goal is to ensure that every item fits cleanly into the hierarchy.

Step 3: Define Parent-Child Links

Parent-child relationships must be explicitly defined. In some cases, these relationships already exist in the cube. In others, you may need to create a lookup table or metadata layer to define them.

For ragged hierarchies, ensure that the overlay supports variable depth. This is common in organizational structures, product catalogs, and geographic data.

Step 4: Implement Drill Paths

Drill paths determine how users navigate the hierarchy. A good drill path:

• Follows a logical sequence
• Reveals progressively more detail
• Supports both drill-down and roll-up

Drill paths should also be consistent across dashboards to avoid confusing users.

Step 5: Apply Aggregation Logic

Aggregation rules must be validated at each level. Incorrect roll-ups can lead to misleading dashboards. Test aggregations thoroughly, especially for calculated measures like ratios or percentages.

Step 6: Visualize the Hierarchy in Dashboards

Once the overlay is defined, integrate it into dashboards. Common visualization techniques include:

• Tree maps for hierarchical distribution
• Indented tables for parent-child structures
• Breadcrumb navigation for drill paths
• Expandable lists for multi-level hierarchies
• Sunburst charts for radial hierarchies

The key is to make the hierarchy intuitive and easy to navigate.

Best Practices for Hierarchical OLAP Overlays

Keep Hierarchies Business-Friendly

Avoid overly technical or system-driven hierarchies. Users should immediately recognize the structure without needing documentation.

Limit the Number of Levels

Deep hierarchies can overwhelm users. Aim for three to five levels unless the business case requires more.

Ensure Consistent Naming

Level names should be clear and consistent across dashboards. For example, always use “Region” instead of mixing “Region,” “Geo,” and “Area.”

Support Both Drill-Down and Roll-Up

Users should be able to move freely between levels. Roll-up is just as important as drill-down for high-level analysis.

Test With Real Users

Hierarchies that look good on paper may not work in practice. User testing helps validate whether the overlay matches real-world workflows.

Conclusion

Creating a hierarchical OLAP overlay is one of the most effective ways to enhance multidimensional analysis. By layering dimensions, defining parent-child relationships, and implementing intuitive drill paths, you transform raw OLAP data into a structured, navigable, and business-friendly analytical experience.

Whether you're building dashboards, designing semantic layers, or modeling complex hierarchies, hierarchical overlays give you the flexibility to present data in a way that aligns with how organizations think and operate. With thoughtful design and careful implementation, they become a powerful tool for unlocking deeper insights and enabling more intuitive decision-making.
